Amazone is offering, in addition to the C-Mix shares, the new C-Mix Clip quick change system for the Cenius mulch cultivator series. The simple, quick, time saving change over from, for example, a deep loosening with narrow shares to stubble work with goose foot shares is possible with the minimum of fuss. Thus the operating costs can be kept as low as possible

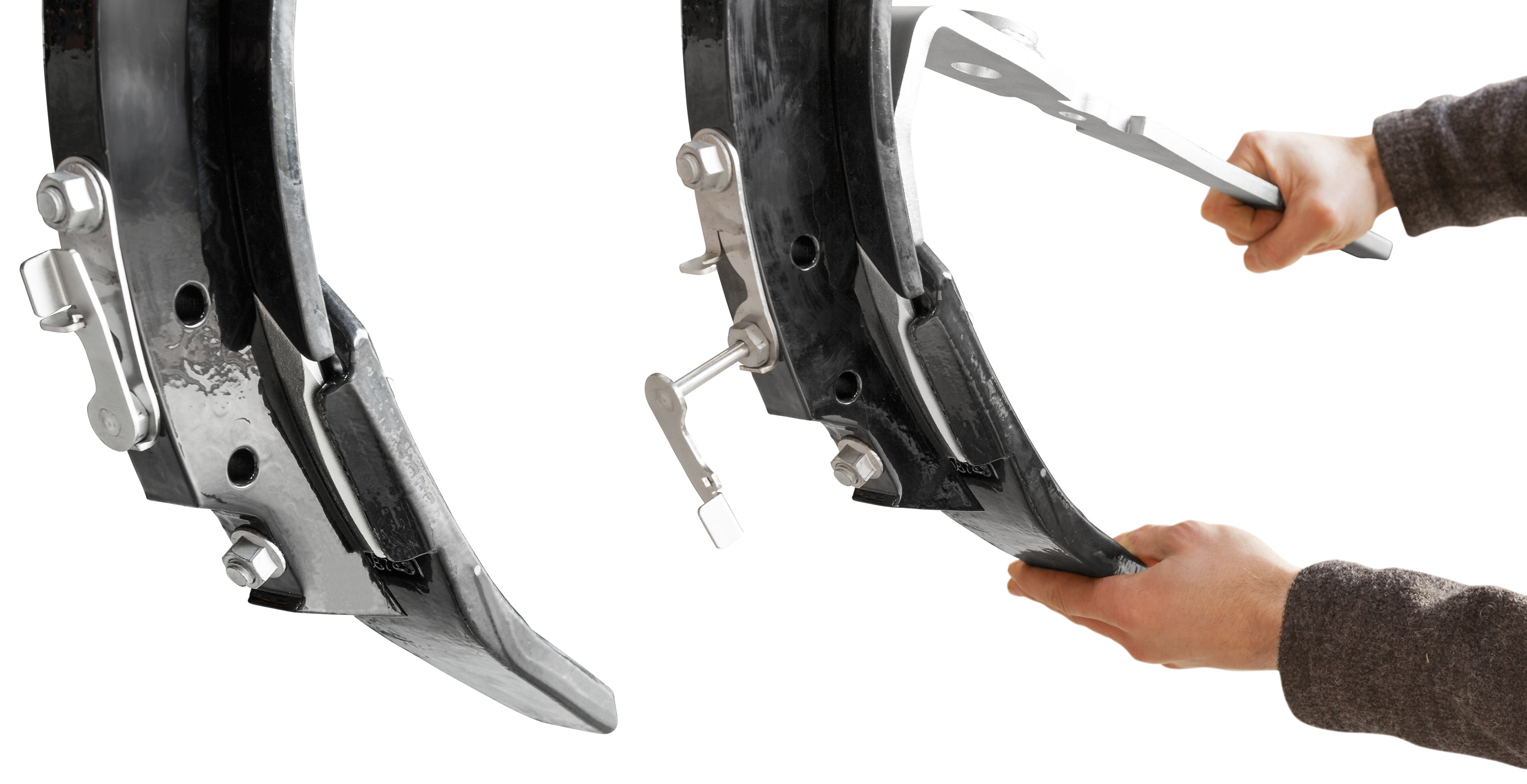

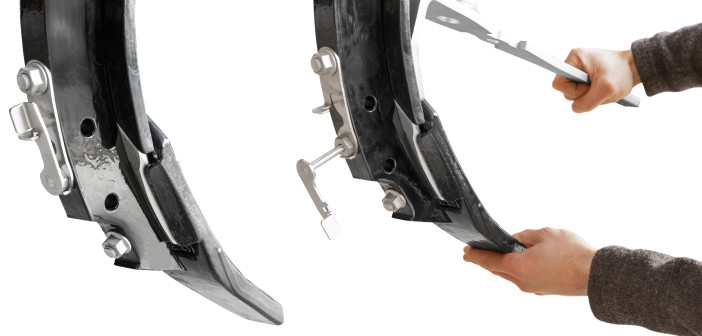

The C-Mix Clip share system consists, exactly like those of the well-known C-Mix shares, of a guide plate and a tip. However, on the C-Mix Clip system, the guide plate is fixed to the tine and the tip is then fixed on the quick change system. After the initial, assembly of the C-Mix Clip bracket on to the tine, different share tips can be attached with the aid of an easily detachable locking pin according to the relevant operational purpose. The securing pin is guided at the reverse side of the tine through a hollow bolt and thus holds the relevant share tip safely on the C-Mix Clip bracket.
Depending on the operating conditions, Amazone offers an 80 mm wide tine which is ideal for the intensive loosening at working depths of 12 cm to 30 cm and for achieving the perfect mix of organic matter down to the deeper soil layers. In addition, a 100 mm wide share tip is available, suitable for 10 cm to 20 cm working depth and is thus suitable both for the deeper stubble tillage and also for primary soil tillage. A 320 mm wide goose foot share tip which is used for the shallow and overall stubble tillage of 3 cm to 10 cm is also available.
A special tool is available to firmly push the share onto the C-Mix Clip bracket. This offers additional comfort during the simple change by a reliable pushing on of the share tips.
With the C-Mix quick change system, Amazone has established a system which reduces the downtime expenditure and thus the costs of a share change.
